Rope ascenders & rope winches
AAK Safety AS

EDER Power Climber

EPC 130-11

Product number: 5232

EPC 130- 11 are designed for the transport of one user with equipment and, if necessary, materials on a vertical rope up to 130 kg.

Strong Engine (2 hp Honda GX50 4-stroke)

Descent handle

Weight 11,2 Kg

Standards
2006/42/EC

7 In stock

Quantity:

Print

Do you miss something?

Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.

Videos

Product description

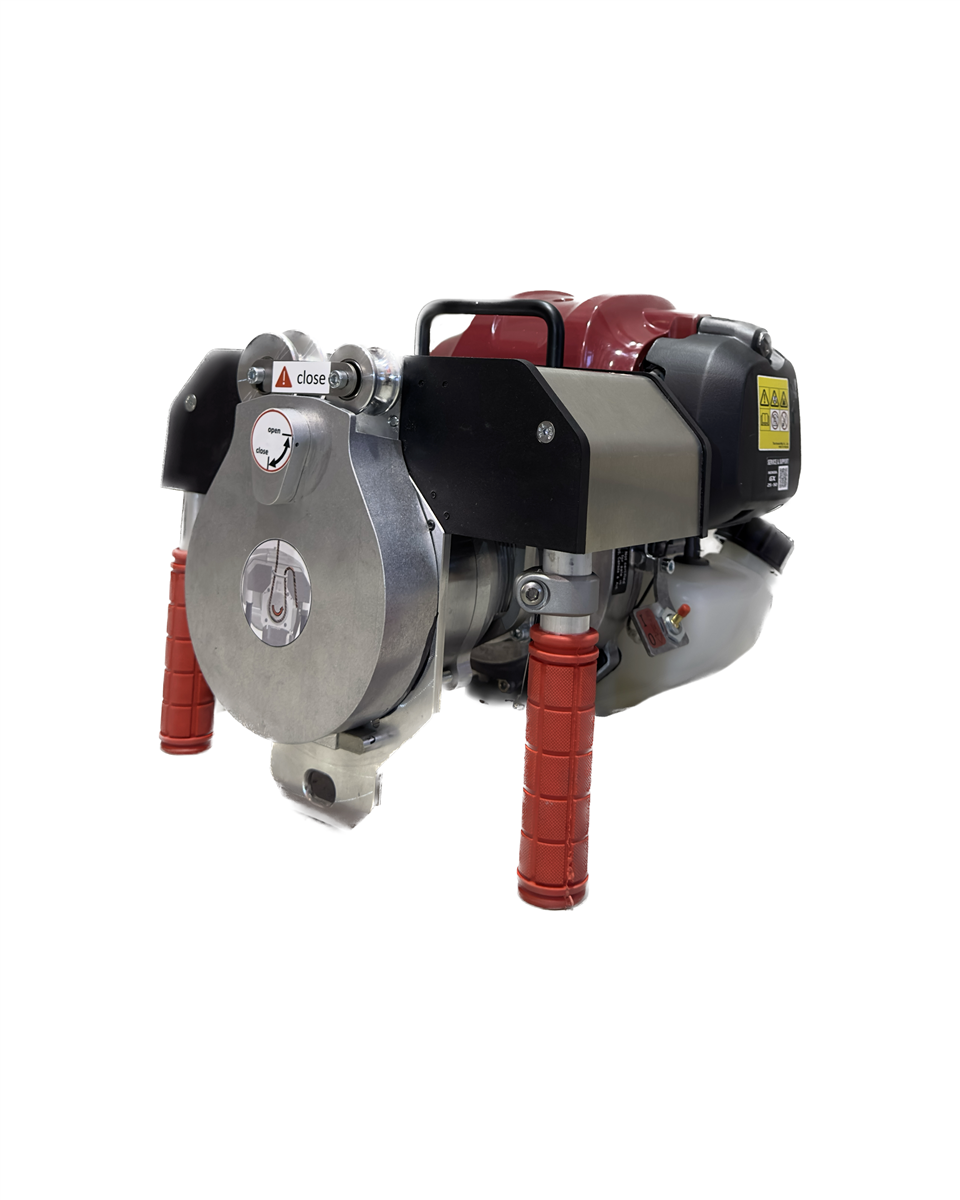

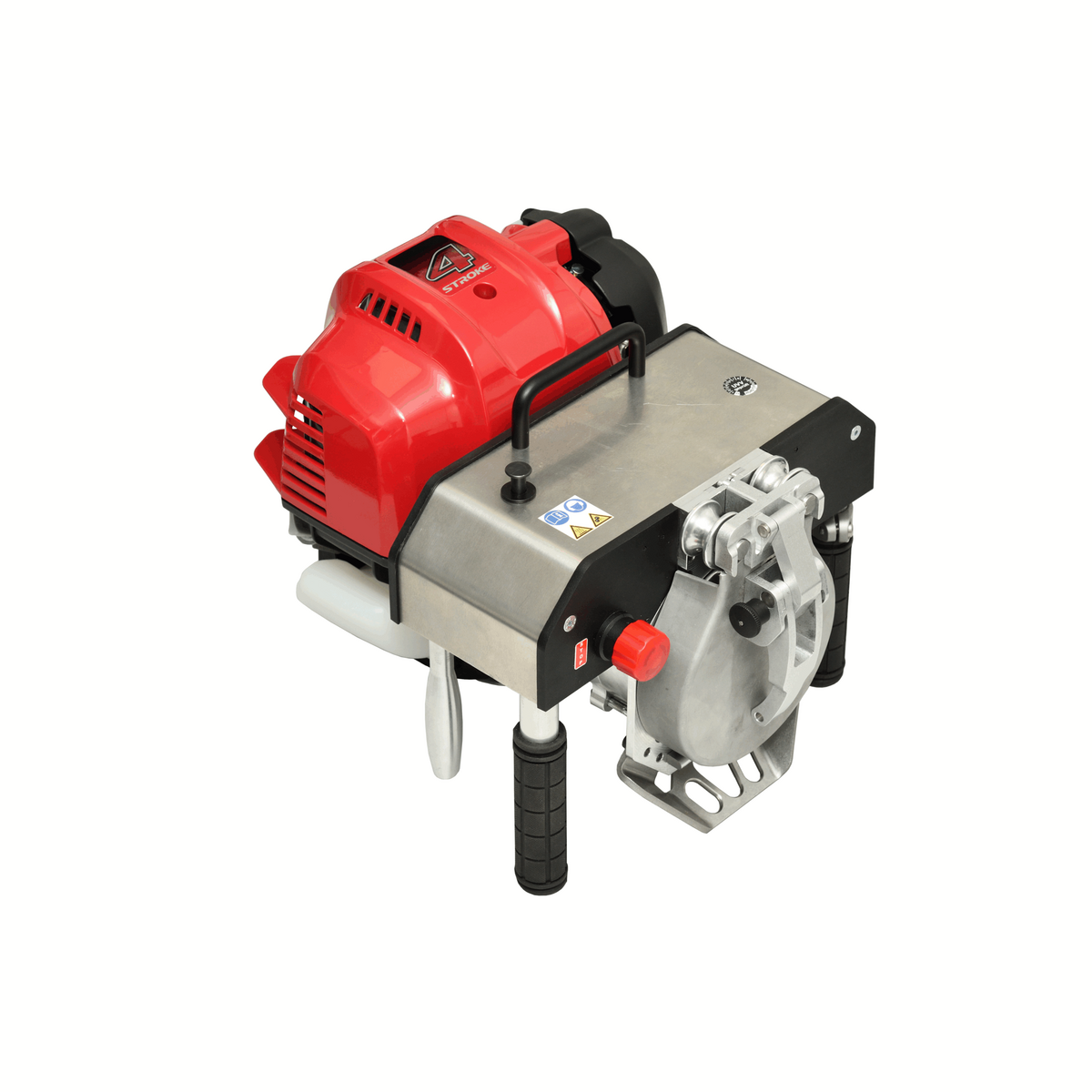

The EDER EPC 130 -11 Power Climber is a high-capacity rope ascender engineered for transporting personnel and equipment vertically. This unit is powered by a robust engine that can be conveniently restarted at work height, thanks to the Easy-Start feature.

Max. permissible load: 130 kg
Weight: 11,2 kg
Ascent speed: 0.5 m/s (130 kg)
Descent speed: 0.3 m/s
Rope: Teufelberger Patron Pluss 11 mm
Dimensions: 30x27x36 cm
Engine type: Honda GX50 (2 hp)
Tank volume: 0.63 l
Engine capacity: 47.9 cm³
Fuel: 4-stroke special fuel
Engine oil: SAE 10W-30 API SJ

Items

Reference
Length (cm)
Width (cm)
Height (cm)
Net weight (kg)
Pieces / Pack
Country of origin
35098-4T 36 27 30 11.2 1 Germany

Technical data

Product properties
Brand: Eder
Maximum load (kg): 130
Maximum number of users: 1
Minimum working temperature (c): -20
Maximum working temperature (c): 40
EN-standard: 2006/42/EC
Notified body: 0158, DEKRA Testing and Certification, Dinnendalhlstr 9, DE-44809 Bochum, Germany
Maximum rope length (m): 100
Descent speed (m/s): 0,3
Functions: Descend function, Lifting function, Support function, Vinch function, Sit function

Product attachments

  • Brukermanual EDER Power Climber 11mm.pdf
    download
  • Brukerveiledning EDER Power Climber 11mm_NO.pdf
    download
  • User Manual EDER-Power-Climber-11mm-en.pdf
    download
