IKAR PLW

Winch

Product number: 3458

A winch for lifting or descending a person or load.

30 meters

Approved for lifting of person and load

0 In stock

Quantity:

Print

Do you miss something?

Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.

Product description

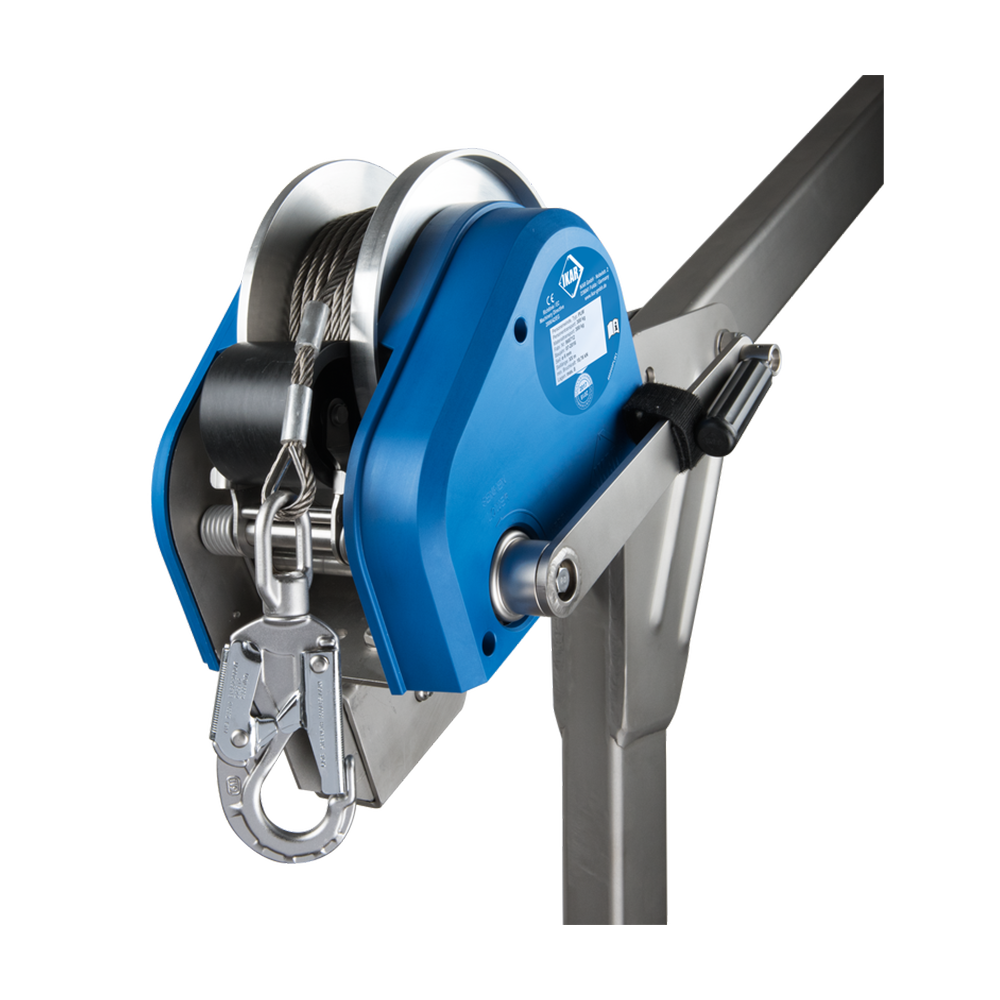

PLW from IKAR is a winch that is approved for lifting and descending both people and loads. The winch is used in cases where the risk of falls in shafts, tunnels, wells or sewage systems is high. PLW can be mounted on either a tripod, davit arm or block to be able to safely lift and lower the load.

Items

Reference
Size (m)
Net weight (kg)
Pieces / Pack
Country of origin
28425-05 30 18.5 1 Germany

Technical data

Product properties
Brand: IKAR
Material: Steel, Stainless steel
Maximum load (kg): 300
Notified body: 0158, DEKRA Testing and Certification, Dinnendalhlstr 9, DE-44809 Bochum, Germany
Annual inspection: Yes, every 12 months
RFID: No
Warranty: 2 year
Declaration of Conformity: Yes
Rope: Stainless steel cable, 6mm
Maximum rope length (m): 30
Fall indicator: No
Minimum breaking strength - MBS (kN): 18.76
Energy absorber: No
Functions: Descend function, Lifting function, Vinch function
Lifting mechanics: Hand crank
Adjustable under load: Yes

Product attachments

PLW from IKAR is a winch that is approved for lifting and descending both people and loads. The winch is used in cases where the risk of falls in shafts, tunnels, wells or sewage systems is high. PLW can be mounted on either a tripod, davit arm or block to be able to safely lift and lower the load.
